Glass Fiber Cartridge Filter
| Features |
 |
|
◇ Single-piece cage and core construction
◇ Excellent chemical compatibility .Suitable for filtering organic solvents,acid bases
◇ Pleated design increased the filtration area
◇ Low pressure drop,long service life
◇ Full range of removal ratings
◇Graded pore density for high dirt holding capacity
|
| Specification |
|
◎ Material: Melt-blown micro-denier Gass fiber
◎ Micron Rating: 0.5,1, 5, 10, 25, 50, 75, 100 Micron
◎ Length: 9.75”,10”,20”,30”,40”
◎ Inner diameter/ Outer diameter: 28 mm / 69 mm cusmtomized dimension available
|
| Operating Condition |
|
◎ Maximum operating forward pressure: 1~25 Micron：2.5bar36.2PSI) 50~100 Micron：2.1bar(30PSI)
◎ Recommended replaceable pressure drop: 1.5 bar(21.7PSI)
◎ Maximum operating temperature: 80°C
|
| Application |

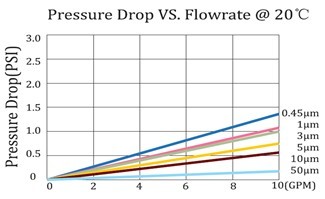

Initial Pressure Drop |
| ◇ Pharmaceutics |
 |
| ◇ Food and Beverage |
| ◇Oil industry |
| ◇ Cosmetics |
| ◇ DI water systems |
| |
|

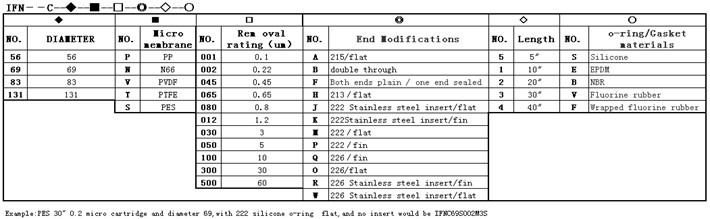

| Product Code |
 |
|
