PVDF Cartridge Filter

Features

◇ Excellent performance of high temperature-seristance, repeated steam in-situ

◇Hydrophobic membrane with high flow

◇Low pressure drop,high flow rate,long service life

◇100% integrity tested


Specification

◎ Material: PVDF

◎ Micron Rating: 0.2,0.45 Micron

◎ Length: 9.75”,10”,20”,30”,40”

◎ Inner diameter/ Outer diameter: 28 mm / 69 mm cusmtomized dimension available
Operating Condition

◎ Maximum operating forward pressure: 1~25 Micron：2.5 bar 50~100 Micron：2.1 bar

◎ Recommended replaceable pressure drop: 1.5 bar

◎ Maximum operating temperature:80°C
Application

◇ Large-scale fermenter air

◇ Intermediate product vessel venting

◇Autoclave vacuum break

◇ Instrument air

◇ Air and gas service lines

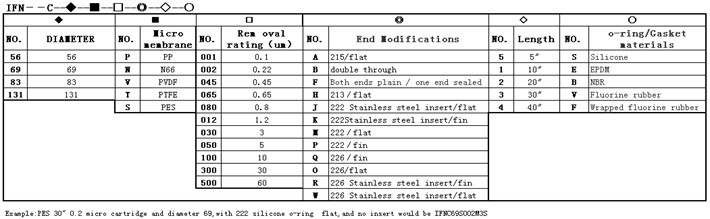

Product Code
