PTFE Cartridge filter

Features

◇ PTFE membrane has excellent chemical resistance

◇ PTFE membrane has about 80~95% porosity

◇ 0.6m2 of filtration area, low pressure drop, and high flow rate

◇ Manufacture in clean room, high clean cartridge

◇ Integrity test is available

◇ Filtration efficiency up to 0.01 micron for air filtration, able to filter bacterium, toxin and micro organism

◇ MRT grade disinfectiion air filter has excellent performance on micro organism prevention

Specification

◎ Membrane: PTFE(Polytetrafluoroethylene) Membrane

◎ Support: High Strength Polypropylene

◎ Micron Rating: 0.05, 0.1, 0.2, 0.45, 1,3 Micron

◎ Inner diameter/ Outer diameter: 28 mm / 69 mm，28 mm / 83 mm

Operating Condition

◎ Maximum operating forward pressure: 95℃：1.4 bar 20℃：5.6 bar

◎ Maximum operating temperature: 95°C

◎ Filtration Area: 0.6m2 (10”)

Application	Initial Pressure Drop
◇Fermentation tank
◇Vent filter of hold tank
◇Electronic industry
◇Semiconductor ultrapure gas filtration
◇ Chemical industry

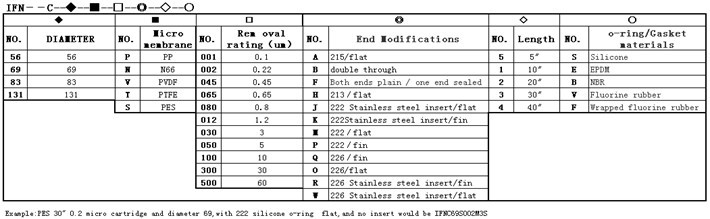

Product Code
