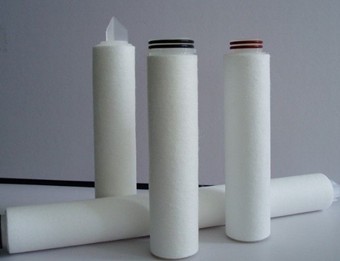

Nylon Depth Filter Cartridge
| Features |
 |
|
◇ Absolute filtration efficiency 0.5Micron~100Micron
◇ Micro-denier melt-blown Nylon fiber, high removal ratings and low pressure drop
◇ Excellent chemical compatibility with solvents, hydrocarbons & aromatics
◇ End caps and connectors are sealed by thermal bond, no resins, binders or anti static agents to ensure minimal extractables
◇ Certificated by NSF 42 and FDA CRF Title 21
|
| Specification |
|
◎ Material: Melt-blown micro-denier Nylon fiber
◎ Micron Rating: 0.5,1, 5, 10, 25, 50, 75, 100 Micron
◎ Length: 9.87”,10”,20”,30”,40”
◎ Inner diameter/ Outer diameter: 28 mm / 63 mm cusmtomized dimension available
|
| Operating Condition |
|
◎ Maximum operating forward pressure: 1~25 Micron：2.5 bar(36.2PSI) 50~100 Micron：2.1bar(30PSI)
◎ Recommended replaceable pressure drop: 1.5 bar(21.7PSI)
◎ Maximum operating temperature: 125°C
|
| Application |

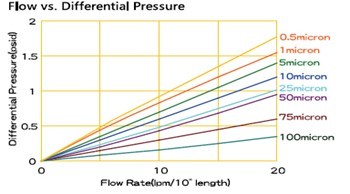

Initial Pressure Drop |
| ◇ High Temperature Fluids |
◇ Air Fresher |
| ◇ Food and Beverage |
◇ Fine Chemical |
| ◇ Pharmaceutical Industry |
◇ Solvents |
| ◇ Vehicle Manufacture |
◇ Solvents |
| ◇ Petrochemical |
◇ Hydraulic Oil |
| ◇ Hydrocarbons |
◇ Chloride |
|
 |
|

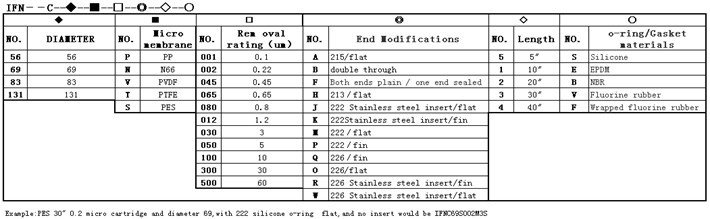

| Product Code |
 |
|
