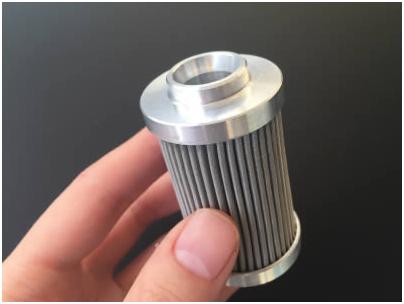

Stainless steel pleated filter
| Features |
 |
Pleated filter elements are made of quality stainless steel woven wire cloth with micron opening. The alternative filter media can be sintered fiber web imported from Belgium.
Pleated filter elements enjoy the characteristics of long life span, easy cleaning, low cost, etc. Stainless steel filter elements we manufacture are widely used in chemical fiber, petroleum, chemical industry, electric power, pharmaceutics, machinery, metallurgy, ceramics, dispose of sewage, foodstuff and beverage, cosmetic, etc.
Main filter media: Stainless steel sintered fiber web and stainless steel wire woven cloth.
Advantages of stainless steel pleated filter elements:
High dirt holding capacity;
High reliable standard specifications;
Low pressure drop due to high porosity;
|
| Specification |
|
◎ Membrane: Stainless steel sintered fiber web and stainless steel wire woven cloth
◎ Micron Rating: 3,5,7,10,15,20,25,30,40,60
Any outline size available according to customer's requirement.
|
|
Major technical index:
|
|
OPERATION PRESSURE : 30Mpa.
PRESSURE DIFFERENTIAL : 5Mpa.
FIOPERATION TEMPERATURE : 300 °C.
FLUID VISCOSITY : 260Pa
|
| |

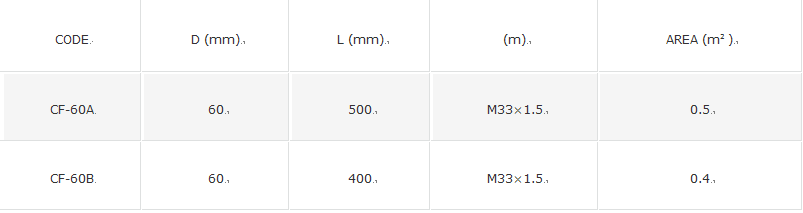

| Product Code |
 |
|
