Nylon Filter Cartridge

Features

◇ Excellent hydrophilization, no prewetting required

◇ Free of adhesive enable to reduce cleaning time

◇ Low pressure drop, and high flow rate

◇ Manufacture in clean room, high clean cartridge

◇ Integrity test is available

◇ End caps and connectors sealed by thermal bond,free of binder

◇ Certificated by FDA

Specification

◎ Membrane: Nylon Membrane

◎ Support: High Strength Polypropylene

◎ Micron Rating: 0.1, 0.2, 0.45, 0.65, 1 Micron

◎ Inner diameter/ Outer diameter: 28 mm / 69 mm，28 mm / 83 mm

Operating Condition

◎ Maximum operating forward pressure: 95℃：1.4bar 60℃：1.4 bar 20℃：5.6 bar

◎ Maximum operating temperature: 95°C Food & Beverage, DI Water 60°C Chemical Filtration

◎ Filtration Area:0.6m² (10”)

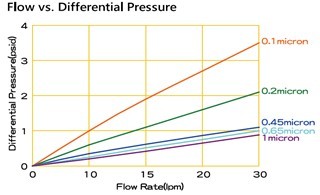

Application	Initial Pressure Drop
◇ Fine filtration of solvent for semiconductor industry
◇ Filtration of base solutions, solvents and photoresists of LCD factory
◇ Terminal fine filtration of DI water system
◇ Alkaline

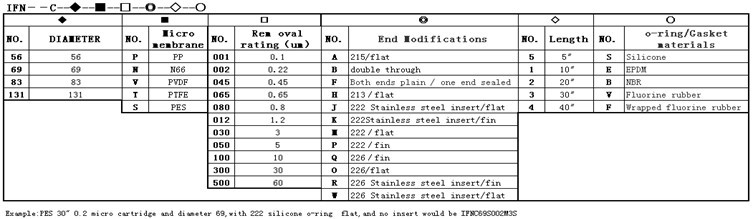

Product Code
